Our full-custom wood doors are specifically designed and handcrafted to create an authentic feel that will complement all styles of architecture.

Built with exceptional craftsmanship and attention to detail, every door is made to your specifications and can be constructed with nearly any species of wood that is desired such as:

• Mahogany
• Western Red Cedar
• IPE
• Walnut
• … and many more!

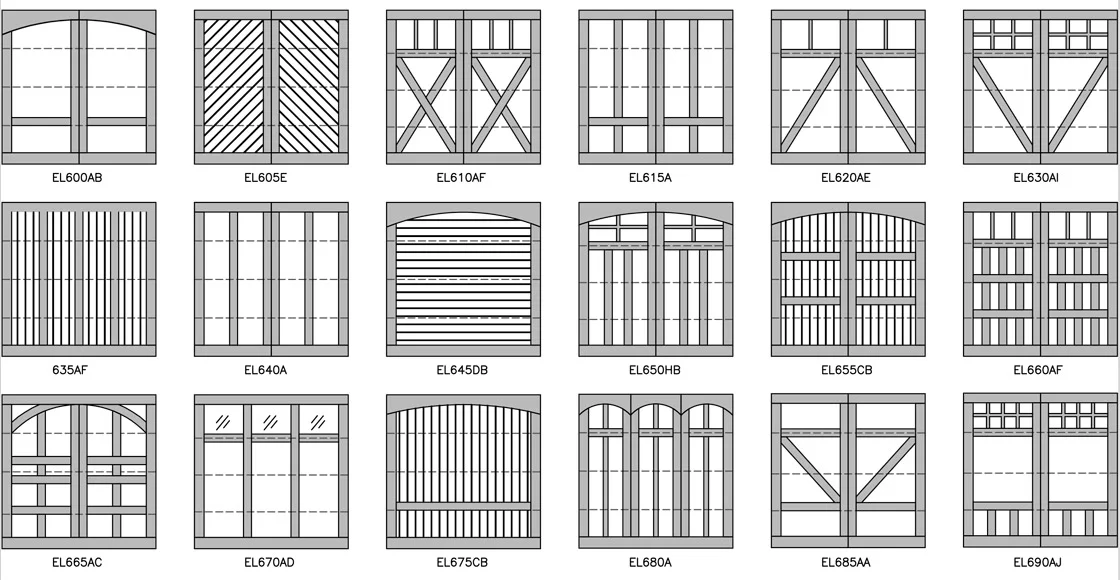

18 standard options available in paint grade or stain grade made up of 4 to 5 layers which hides the rail construction leaving a genuine carriage house impression. Each design can be customized to add the “it factor” to the home’s appeal.

Choose your door

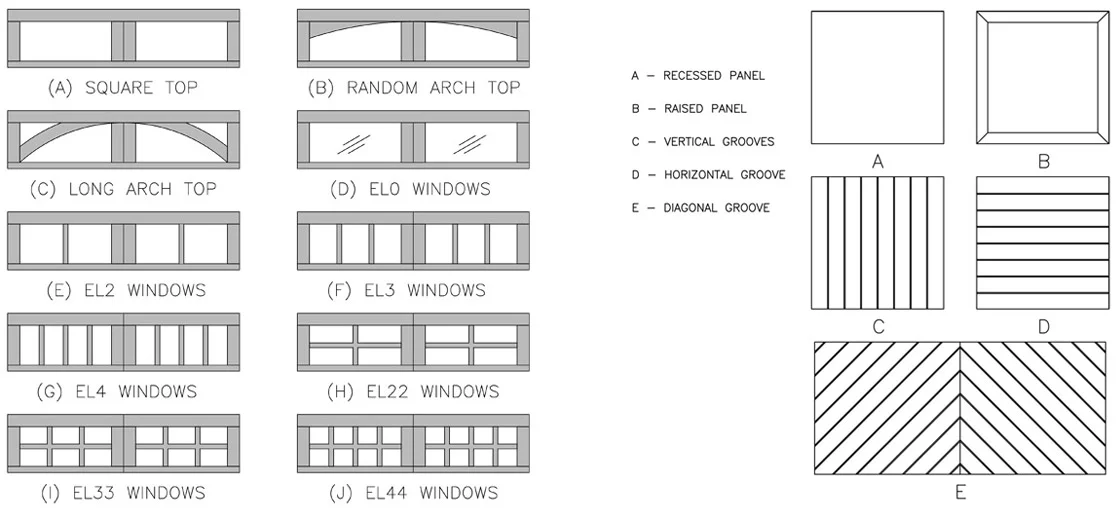

Window & Panel Styles

• 1/8” Clear Double Strength Billet Glass
• Many other types of glass are available including insulated options
• 2″ Wide Mullions
• The Faux Divide is a standard
• True Divide (Thru and Thru) available

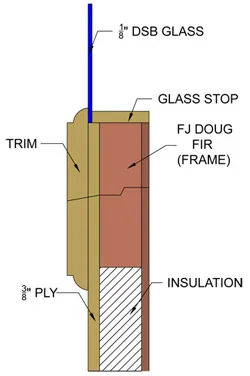

4 layer door

5 Layer Door

Finish

• Paint Grade: Comes primed white with 1 coat of exterior grade
• water based primer
• Stain Grade: Comes unfinished and requires sanding prior to finishing. (Finishing is required to be completed within 72 hours of installation)

Track

• All 2″ tracks are 12″ or 15″ Radius
• 14 gauge horizontals with 17 gauge verticals
• All tracks are mounted with reverse continuous jamb angle
• Horizontals are reinforced with a 13 gauge angle mounted continuously to the length of the horizontal
• All 3″ tracks are 15″ Radius – 12 gauge and use is determined by the weight of the door
• Options: Low Headroom (0″ or 3.5″ ), High Lift, Vertical Lift, Follow the Pitch

Hardware

• All components are galvanized steel and consist of 11 gauge hinges, and 12 gauge top & bottom fixtures.
• 2″ nylon 10 ball bearing rollers with long-stem for top & bottom fixtures and short-stem for hinges.
• Inside lock included.
• Please Note: 3″ steel 10-ball bearing rollers will be used when specified.

Counterbalance

• Springs are oil-tempered and calibrated per door weight, size, and track requirements
• Standard springs are 10,000 cycle
• 25k, 50k, and 100k cycle springs are available with additional cost
• 12 gauge bearing & spring plates
• 16 gauge torsion tube is standard, 14 gauge, 11 gauge, and solid shafts are available and used when specified

Struts

• 22GA 2-1/4″ galvanized steel struts with every door
• 3″ when specified
• Quantity is determined by the number of sections

Weather Seal

• 1-3/32″ EPDM bottom seal and nailed in using galvanized nails

Miscellaneous

• Putty: All doors are assembled with galvanized staples and filled with putty except Cedar and Marine Ply
• The standard Texture is smooth
• Hand Hewn, Re-Sawn, and Wire Brushing are available for additional cost
• Perimeter Weather Strip (Stop Mold): 11/16”x2-1/4”
• Available in all species of wood
